AGI Westfield Belt Conveyors

Farmrite Distribution & AGI Westfield since 2021

Farmrite Distribution in Moree NSW is an Australian family owned company supplying the quality range of reliable AGI Westfield Belt Conveyors nationwide since 2021.

Designed for high capacity while minimising damage and helping to protect seed quality, Westfield Belt Conveyors are engineered to be rugged and reliable. AGI Westfield Belt Conveyors are renowned for being gentle on delicate crops like chickpeas and soybeans.

Farmrite supplies the outstanding Westfield range which includes the WCX3 FMD Field Loader, Top Drive Field Loader, 1500 Series Belt Conveyors, 2400 Series Belt Conveyors, Low Profile Transfer, and 2400 Series Pitstop.

Odoo - Sample 3 for three columns

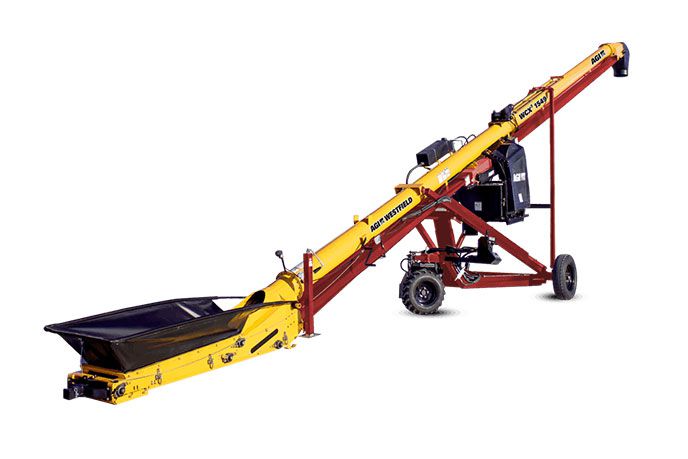

WCX3 FMD Field Loader

Westfield WCX 15:49 FMD Field Loader

The Westfield WCX3 Field Loader includes all the benefits of a standard belt conveyor but features an extended low profile hopper that makes it easy to get in under silos. The 15 inch belt running in a 10 inch tube gives a maximum capacity of 245 tons per hour.

The WCX3 Field Loader has a turbo clean wash system allowing it to handle tough products like fertliser and canola. The new IBEX Mover Kit makes moving the WCX3 Field Loader a breeze.

Odoo - Sample 3 for three columns

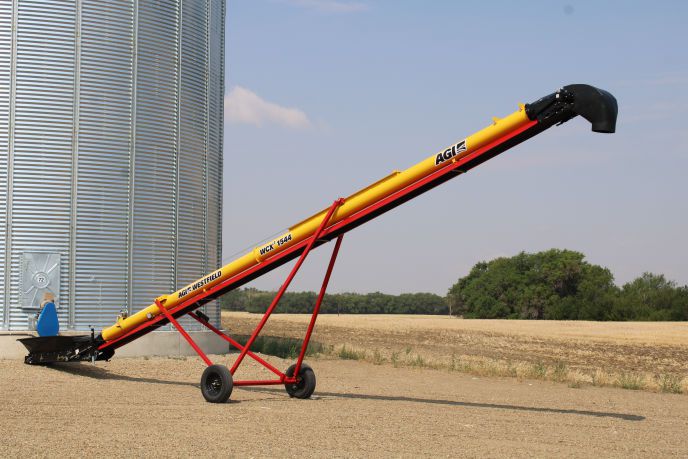

Top Drive Field Loader

Westfield 15:49 Top Drive Field Loader

The AGI Westfield Top Drive Field Loader features the same extended low profile hopper as the FMD and is available in electric or hydraulic drive.

Odoo - Sample 3 for three columns

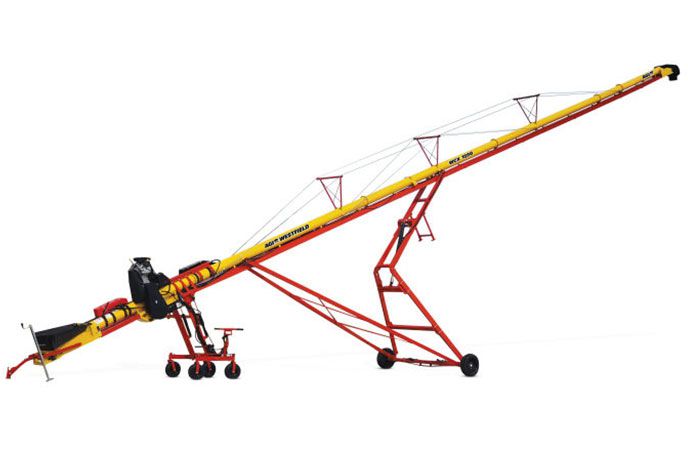

1500 Series Belt Conveyors

The Westfield WCX 1500 Series Belt Conveyors are available in 67 to 102 foot lengths.

Models  -  15:67    15:77    15:87    15:102

The Westfield 1500 Series Belt Conveyors are available in 67, 77, 87 and 102 foot lengths. The 67, 77 and 87 models are motor driven with scissor lift undercarriage and hydraulic mover kits. The 100 foot model is PTO driven. A Swing Away option is also available.

The Westfield 1500 Series have a 15" belt running in a 10" tube and are capable of 160 tons per hour. They come standard with weather guards, plastic hood and collapsible canvas hopper.

Odoo - Sample 3 for three columns

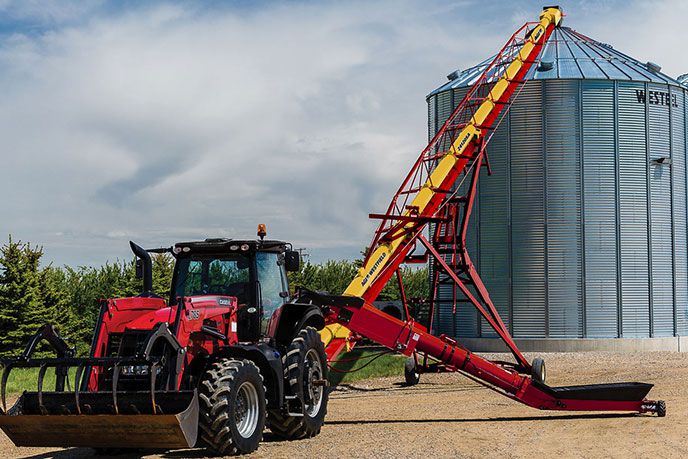

2400 Series Belt Conveyors

The Westfield WCX 2400 Series Belt Conveyors are available in 95 to 120 foot lengths.

Models  -  24:95    24:105    24:120

The Westfield 2400 Series Belt Conveyors use a 23.5 inch belt running in a 14 inch tube to give a maximum output of 6 tons per hour. Available in lengths from 95 foot to 120 foot with dual cylinder hydraulic scissor lift on 95' model and a newly designed heavy duty undercarriage for 105 and 120' models. The Westfield 2400 Series are available with side PTO and swing away options.

Odoo - Sample 3 for three columns

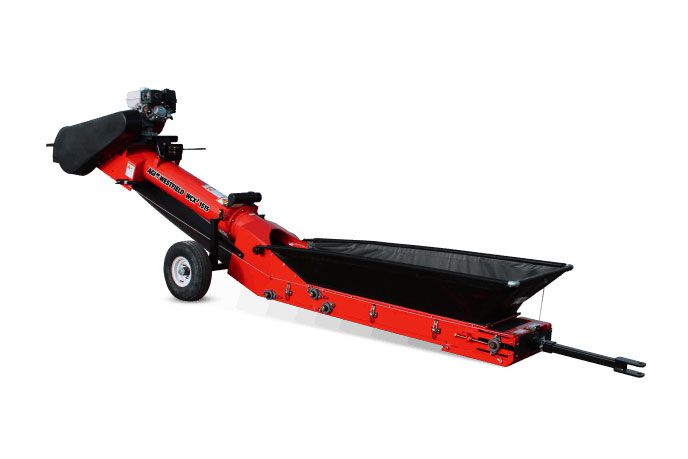

Low Profile Transfer

Westfield 15:15 LP Transfer

Featuring  a 7½" hopper clearance, 9" clearance at the transition and a discharge height of 28", the Westfield 15:15 Low Profile Transfer is perfect for getting between trailers on B-double and road trains.

Odoo - Sample 3 for three columns

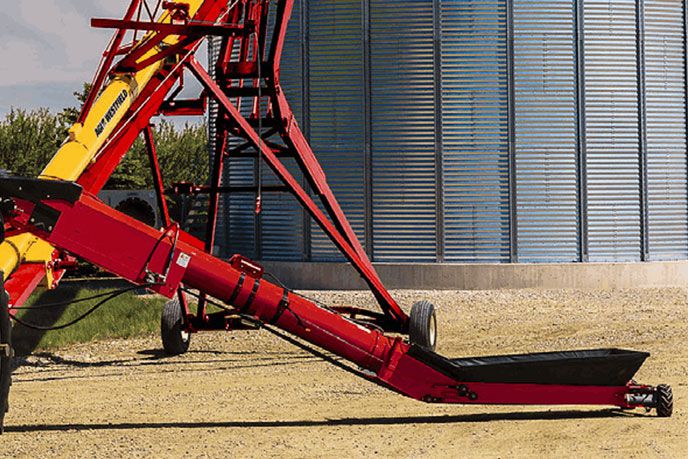

Swing Away Option

Available for 1500 and 2400 Series.

The low profile Swing Away with collapsible hopper is available for the 1500 and 2400 series conveyors. Featuring a centre mounted CV PTO shaft with gearbox drive system, standard with hydraulic winch. The swing conveyor is hydraulicly driven and requires approximately 12 GPM on 1500 series, 18 GPM on 2400 series.

Odoo - Sample 3 for three columns

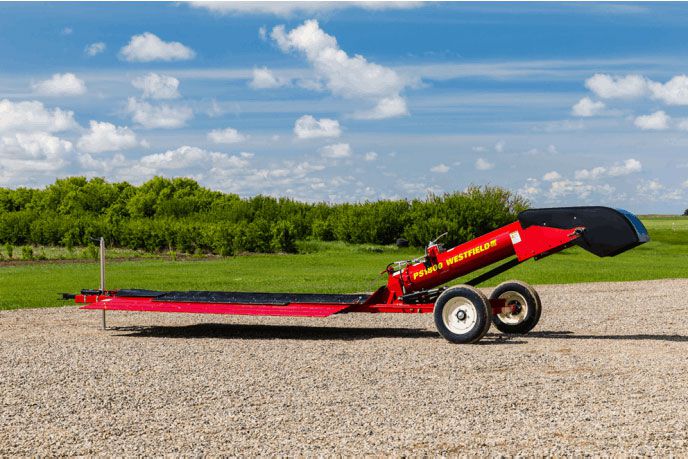

2400 Pitstop

Westfield 2400 Portable Drive Over Pit

The Westfield 2400 Series Pitstop has a 7.5" clearance and a maximum capacity of 380 tones per hour and a discharge height of 36". Available in hydraulic or electric drive.
